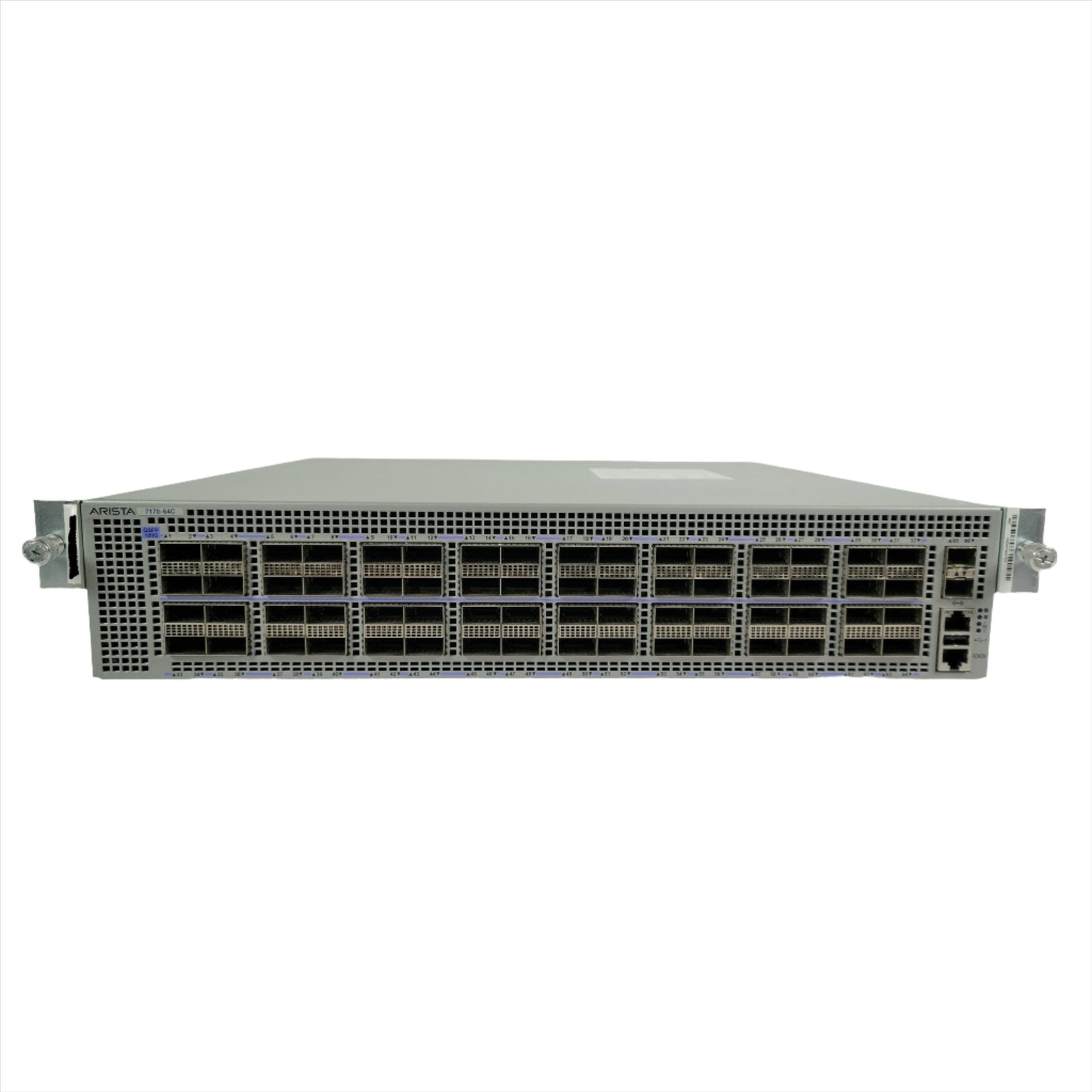

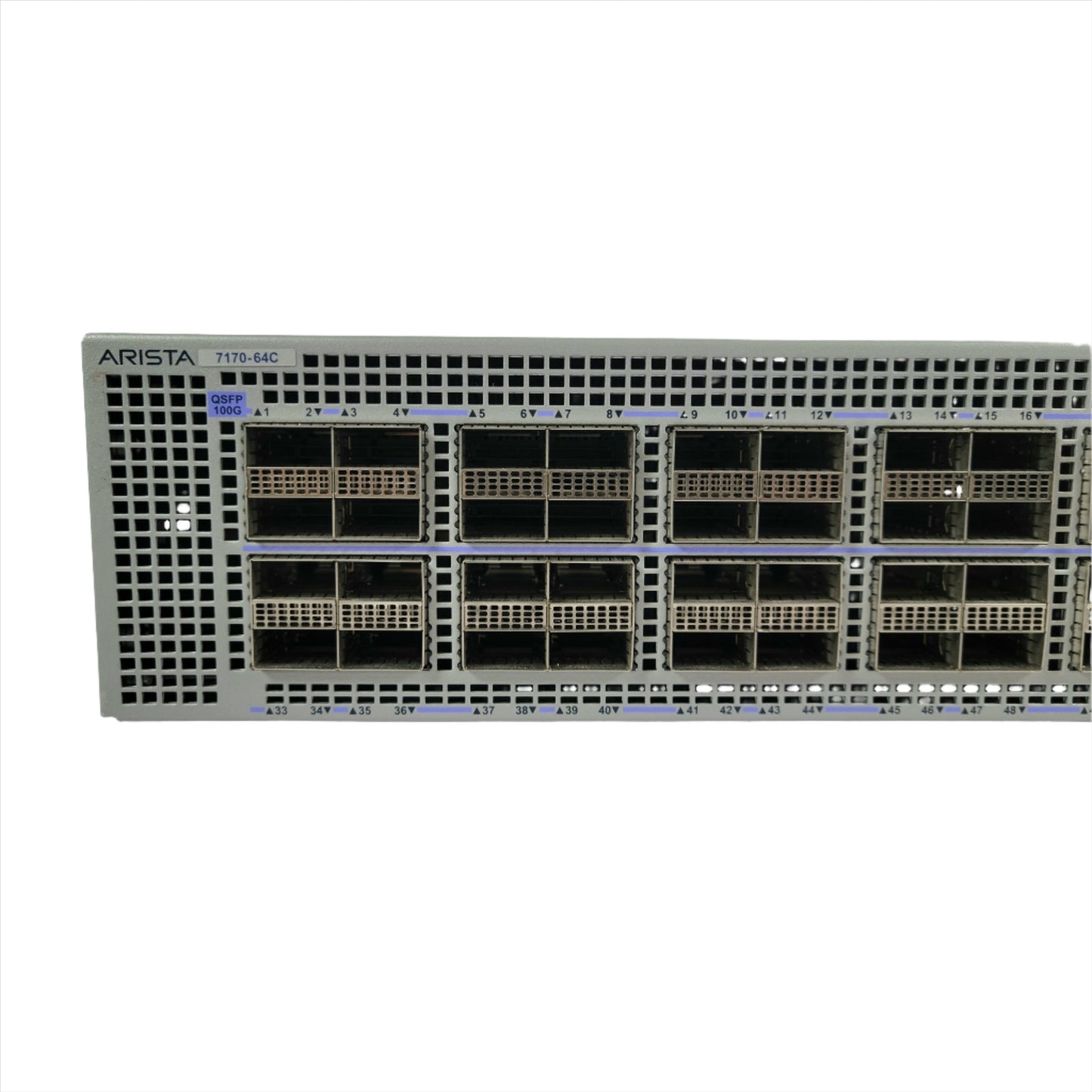

Arista DCS-7170-64C-M-F Programmable 64x 100GbE QSFP switch (Used - Good)

Highlights

The Arista DCS-7170-64C-M-F switch features programmable 64 x 100GbE QSFP and 2 x SFP+ ports. The chassis include 2x PWR-745W AC or 1900W DC powers and 4x FAN-7002. AC or DC power and airflow direction options available. Consult with a representative for further information or configuration assistance.

The 7170-64C is a 2RU system with 64 100G QSFP ports offering wire speed performance with an overall throughput up to 12.8 Tbps. Each QSFP port is capable of a choice of 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE with hitless confguration change between modes. The 64 QSFP ports can be broken out to a system maximum
of 256 ports allowing for easy transitions and maximum flexibility enabling deployment as both a leaf and spine. The two integrated SFP+ ports provide additional high speed connections for management networks and out of band monitoring.

Key high availability features include:

• 1+1 hot-swappable power supplies and four hot-swap fans provide dynamic temperature control combined with N+1 redundancy
• Color coded PSU’s and fans that deliver platinum level power defciency
• Live software patching
• Self healing software with Stateful Fault Repair (SFR)
• Smart System Upgrade (SSU) and Accelerated Software Update (ASU) *

Whats in the Box?

• Rack Mounts
• Power and console cables

General Information

• Number of Ports: 66
• Model Number: DCS-7170-64C-M-F
• Item Dimensions - H x W x D (IN): 19 x 18 x 3.5
• Airflow: AFO (Front to Back)
• Switch Power (V): Standard
• Power Source Type: AC
• Item Weight (LBS): 34
